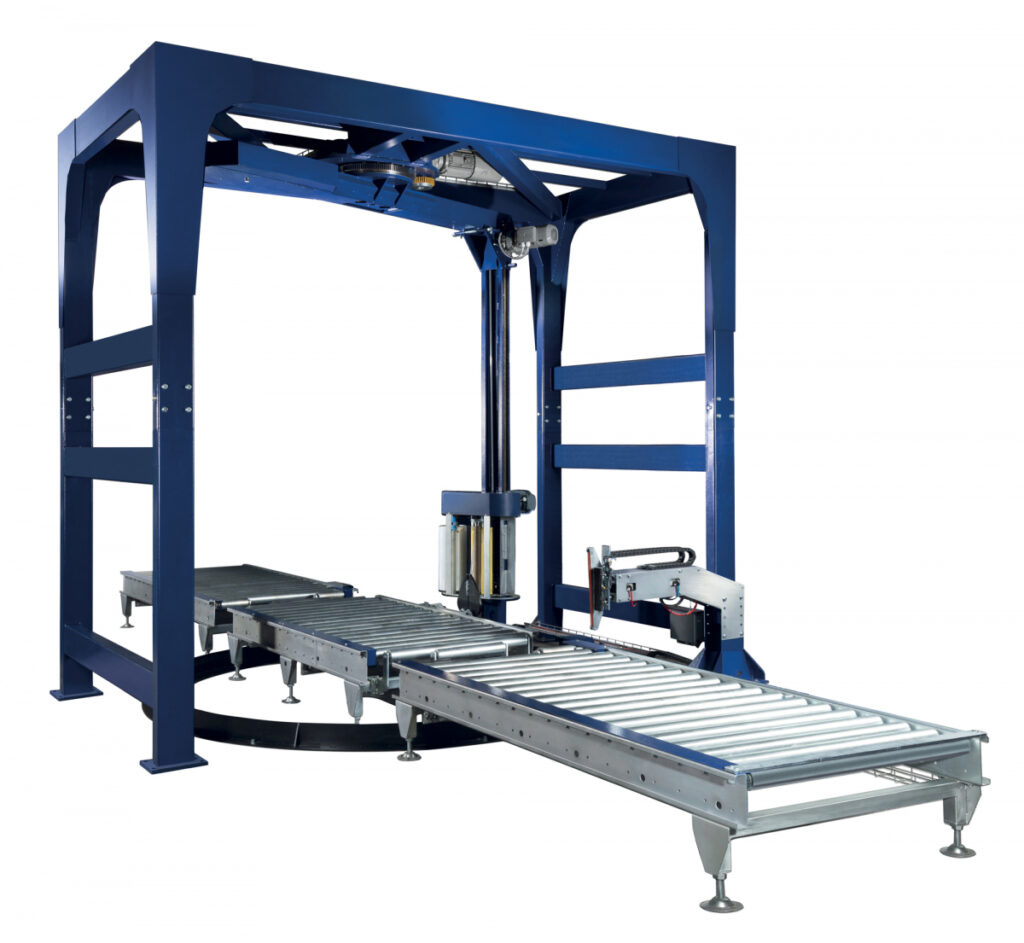

Automatic wrapping machine with rotating arm and ring

Patent: Synchronized film cutting and sealing unit

Upon completion of the wrapping cycle, this unit cuts the film and follows the outgoing palletized load during the sealing process. In this way, the next pallet can immediately enter the wrapping area, making the cycle faster and more efficient.

Patent: Guided arm

The Runner Arm is a stretch film wrapping machine that surpasses conventional standards in its category. At the bottom, the arm is held by a ring that compensates for centrifugal force. The result is up to 45 revolutions per minute on a rotating arm wrapping machine.

Film saving for every type of load

The electronic motorized film pre-stretch carriage, which is standard equipment on all Technowrapp automatic stretch film wrapping machines, allows stretch film pre-stretch up to 160%. Load stabilization is ensured with just 72 grams of film. This value has been calculated for a pallet measuring 800 x 1,200 mm, 1,500 mm in height, with 10 wraps, an average film tension of 5 kg, a 500 mm high film roll, and a film thickness of 17 µm.

Stable pallets and heat-controlled sealing

The standard EP-F2 pre-stretch carriage operates in the area where the film achieves its best mechanical properties for product retention. The heat-controlled sealing surface ensures greater durability and reliability of the seal. This not only saves film but also provides an additional guarantee of load stability.
