Semi-automatic Clipband Clipping Machine SM 35/40 A – Aluminum
Semi-automatic clipband clipping machine, suitable for use with aluminum tape 35/40 mm in length and 5/7 mm in width.
Are you interested in this product?
Fill out the form and we will contact you with an offer and availability.
Are you interested in the product?
Fill out the form and we will contact you with an offer and availability.

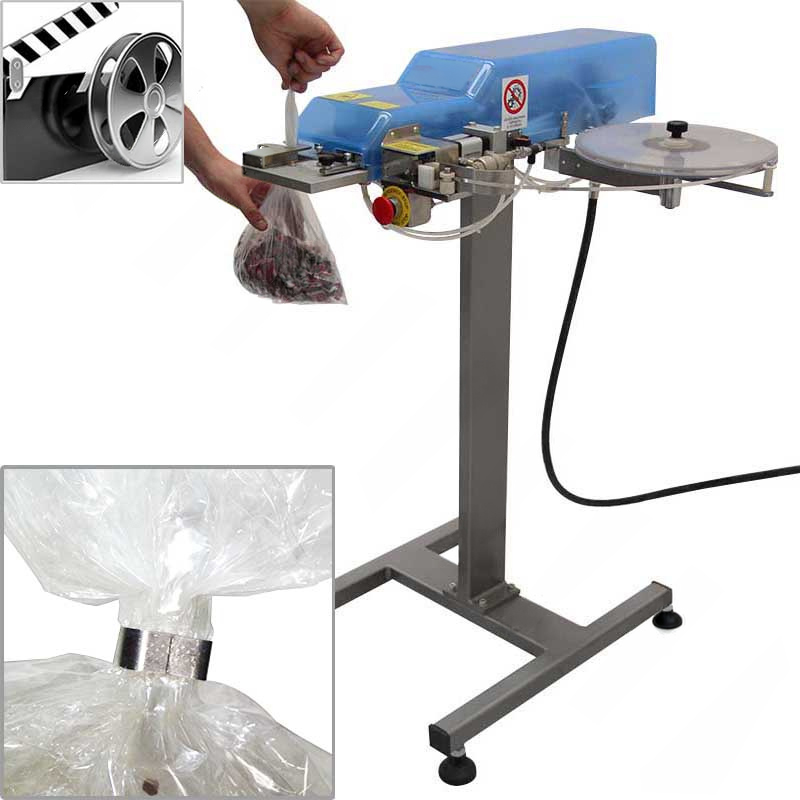

The pneumatic clipping machine is suitable for closing bags made of any material, using 5/7 mm high aluminum tape.
All parts that come into contact with the product are made of AISI 304 stainless steel, suitable for food contact.
The closure is performed by a high-autonomy tape roll, which is cut to a length of 35/40 mm, wrapped around the neck of the bag, and then pressed, creating a flat closure.
The machine is prepared for a marking kit, which can be purchased upon order and includes a date stamp and numerical marking elements.
Model
SM 35 A – 5 mm
SM 40 A – 7 mm
Machine Operation
SM 35 A: pneumatic
SM 40 A: pneumatic
Air Consumption
SM 35 A: 50 liters/minute
SM 40 A: 50 liters/minute
Operating Pressure
SM 35 A: 6 bar
SM 40 A: 6 bar
Maximum Closing Speed
SM 35 A: 30 pieces/minute
SM 40 A: 30 pieces/minute
Aluminum Closure Dimensions
SM 35 A: width 5 mm, thickness 0.6 mm, length 35 mm
SM 40 A: width 7 mm, thickness 0.6 mm, length 40 mm
Autonomy
SM 35 A: approx. 2,800 closures
SM 40 A: approx. 2,500 closures
Aluminum Tape Length
SM 35 A: 100 m
SM 40 A: 100 m
Closure Type
Aesthetically elegant flat closure
Machine Dimensions
SM 35 A: 600 x 500 x H 990 mm
SM 40 A: 600 x 500 x H 990 mm
Machine Weight
SM 35 A: 45 kg
SM 40 A: 45 kg
Printing Line
SM 35 A: 1
SM 40 A: 2
Characters included in the optional marking kit
The characters included in the kit are the numerical characters listed in the table below, with a height of 2.5 mm.
Characters are sold only in complete kits. It is not possible to order individual characters.
Standard characters
0: 4 pieces
1: 4 pieces
2: 5 pieces
3: 2 pieces
4: 2 pieces
5: 2 pieces
6: 2 pieces
7: 2 pieces
8: 2 pieces
9: 2 pieces
