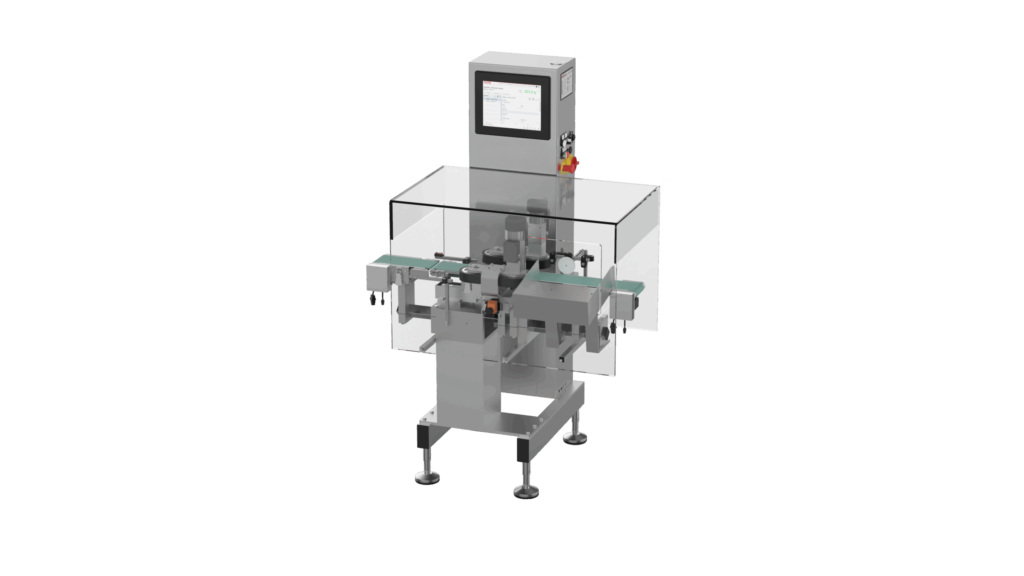

Checkweigher & Metal Detection System COMBI MD
Dynamic checkweigher with integrated metal detection.
The COMBI MD control solution meets market demands for weighing accuracy and metal particle detection. This equipment contributes to quality control and production efficiency, increasing raw material savings by reducing the number of rejections.
The COMBI MD offers robust, stable, and flexible construction thanks to its modular system. It is the ideal solution for centralizing quality control of production batches, packaged in-line, at a single point, thus saving space.
It includes advanced electronic systems for maximum accuracy in weighing and metal detection. Additionally, it features modern software, a touchscreen, and extensive communication systems.
MARKET SECTORS
Agriculture, food, bakery, beverages, meat cutting, packaged meat, frozen products, canned products, pharmaceuticals, cosmetics and chemical products, bulk products, non-food, baby food, pet food, ready meals.
Are you interested in this product?
Fill out the form and we will contact you with an offer and availability.
Are you interested in the product?
Fill out the form and we will contact you with an offer and availability.
Operating Range
Throughput
400 units/minute*
Accuracy
From 0.1 g**
Minimum Weight
From 0.1 g**
Maximum Weight
Up to 20 kg
Adjustable speed depending on format
Dimensions
Wide range of configurations
Working Height
600–1200 +/- 35 mm***
Machine Height
1660 mm
Protection
IP54 (IP65 / IP66)
Interface
User-friendly software
Touchscreen
12” color LCD-LED ?
Ethernet and USB connection
Digital inputs/outputs
Products in memory
Max. 900
Performance
Power Supply
230 +/- 10% VAC
Frequency
50/60 Hz
Consumption
750 W
Operating Temperature
0 ºC – 40 ºC
- Intelligent algorithms to eliminate external noise and vibration interference
- Information on partial and total production, times, shifts, and stoppages
- Personalized access by user level
- Real-time alerts for deviations in key parameters: average weight, variance
- Real-time rolling graphs for weight evaluation, enabling quick decision-making
- Automatic zero-point adjustment for maximum accuracy, with deviation compensation
- OEE reports for performance and efficiency optimization
- Flexible rejection systems: air blast, pusher, and series of retractable deflectors
Accessories
- Adjustable side and top guides
- Magnetic, side, and screw feeders, etc.
- Configurable enclosed guards
- Air conditioning
- Alarms and signal lights
- Rejection systems
- Customization of dimensions, heights, widths, and weighing area
- Hygienic design based on EHEDG principles
- Design adapted for inclined lines
- Anti-vibration base
- Independent base frame
- Screen mounted on an articulated arm
- Data printer
- Custom IP protection
- Multiple operating options
- Uninterruptible Power Supply (UPS)
Communications and Software
- Multiple communication protocols: MODBUS TCP/IP, OPC UA, etc.
- Custom software: improved performance and profitability
- VIT4 software: production data management
- Remote connection: for off-site technical support
- Feedback system: dosing/packaging correction
- Visual inspection: supplements product information
- Manual or automatic barcode, QR, and IR reader
- Confirmation of accepted or rejected products
- Accumulation detection
- Speed variation based on pulses
