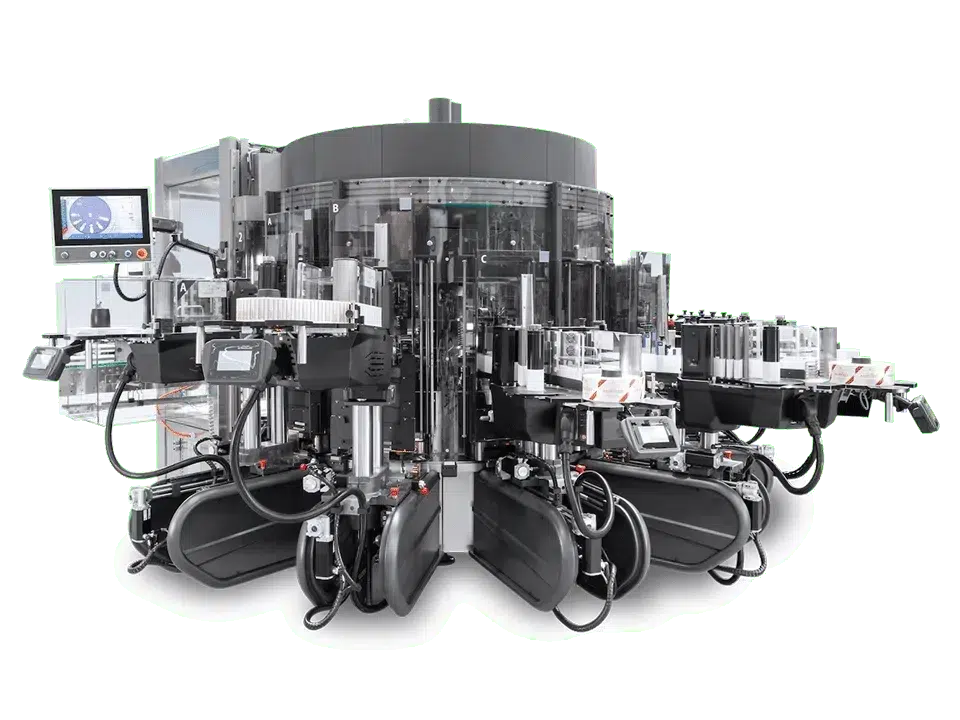

High-Speed Automatic Modular Rotary Labeling Machines

Modular SL rotary labeling machines are fully automated solutions that allow for a multitude of configurations and application technologies.

They feature fully interchangeable labeling stations, which can be replaced in a few simple steps.

Thanks to this, it is possible to immediately switch from a hot melt system to a cold glue system or a pressure-sensitive labeling system.

The stations can be either fixed or mounted on independent trolleys, thus the modular philosophy is expressed in both the available technologies and the achievable configurations.

The Modular SL is a machine with an emphasis on safety, making operator protection another strong point.

It features shutter-type guards which, when raised, immediately stop the machine’s operation. The same innovation is applied to the cold glue stations (patent pending).

Are you interested in this product?

Fill out the form and we will contact you with an offer and availability.

Are you interested in the product?

Fill out the form and we will contact you with an offer and availability.

Submit
Chemicals & Detergents
Chemicals & Detergents
Cosmetics
Cosmetics
Animal feed
Animal feed
Fertilizers & Building Materials
Fertilizers & Building Materials
Food
Food
Paper products
Paper products
Pharmaceuticals
Pharmaceuticals
Features

Production Speed
2,000 to 72,000 BpH

Machine Diameter
576 - 768 - 960 - 1120 - 1420 - 1730 - 2320

Technology
Pressure-sensitive label, hot melt, cold glue, roll-fed hot melt

Applications
Front and back labels, neck labels, I, L and U type tax strips, wrap-around labels

Market Sectors
Food and dairy, pet food, personal and home care products, chemicals, pharmaceuticals

Optional Equipment
  • Orientation systems with cameras, optical fibers, or photocells
  • Universal container starwheel
  • Quality control systems with cameras
  • Rejection systems
  • Inkjet and/or laser printers
  • Container vacuum compression
  • Conveyor system with pucks for unstable containers
  • Automatic format change adjustments with motors
  • Conveyor belt grinding
  • RTX version with double carousel for tax strip application
