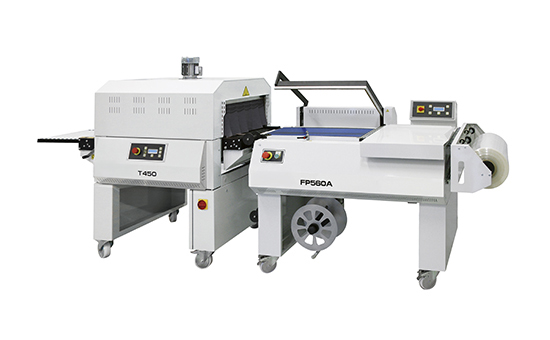

Semi-automatic L-bar Sealer
The semi-automatic and automatic packaging machines of the FP series, featuring an L-type sealing system, are characterized by excellent value for money and modular construction. All models in the series can be supplied with or without a shrink tunnel.
The INOX version of these machines is ideal for meeting the needs of the food industry. It features a stainless steel frame (AISI 304) and is equipped with a conveyor belt compliant with FDA, EU, and USDA regulations for food contact.
Compared to traditional L-sealers, the FP series offers higher outputs, as well as the ability to use polyethylene film, in addition to traditional shrink films. It includes different models for outputs reaching up to 3,600 packages/hour.
Market Sectors
Bakery, confectionery, dairy products, fruits and vegetables, fish, meat, eggs, printing, stationery, IT products, dry cleaning, household goods, toys, cosmetics, pharmaceuticals, electrical and electronic goods, plastics, wood, paper, detergents, mechanical industry, lubricants, cases and boxes, shelving, logistics, co-packers.
Are you interested in this product?
Fill out the form and we will contact you with an offer and availability.
Are you interested in the product?
Fill out the form and we will contact you with an offer and availability.
- Continuous cycle sealing
- Package deviation device
- PTFE-coated sealing blade
- Closed-circuit liquid cooling for the sealing bars
- Coolant level indicator
- Adjustable working height for sealer and tunnel via external crank
- Movable product holding plate, independent of the film roll base, for better film adaptation to package dimensions
- Emergency button
- Automatic package discharge via motorized conveyor belt
-
- In case of malfunction, only the damaged unit can be replaced, without loss of data stored in memory
- This system allows simple and precise control of all machine functions, such as:
- Machine status
- Number of packages produced via electronic counter
- Real-time production
- Sealing temperature adjustment
- Package discharge speed
- Automatic hood closing and reopening, motorized and inverter-controlled
- Sealing arm opening delay
- Sealing arm safety device
- Ability to program up to 10 different work cycles, resulting in increased productivity and simplified use
- Fault diagnostics
-
- Reduced energy consumption
- CE compliance
Power Supply
220–240 V
Phases
1PH + N + PE
Frequency
50/60 Hz
Installed Power
2,500 W
Sealing Bar
560 x 430 mm
Max. Product Height
230 mm
Conveyor Belt Speed
19 m/min
Output
Up to 1,500 pph **
Max. Film Roll Dimensions
600 - Ø 300 mm
Machine Dimensions
2010 x 790 mm
Machine Height
1050 mm
Machine Net Weight
148 kg
Suitable Films: PVC, Polyolefin, and Polyethylene
Up to 50 µm
