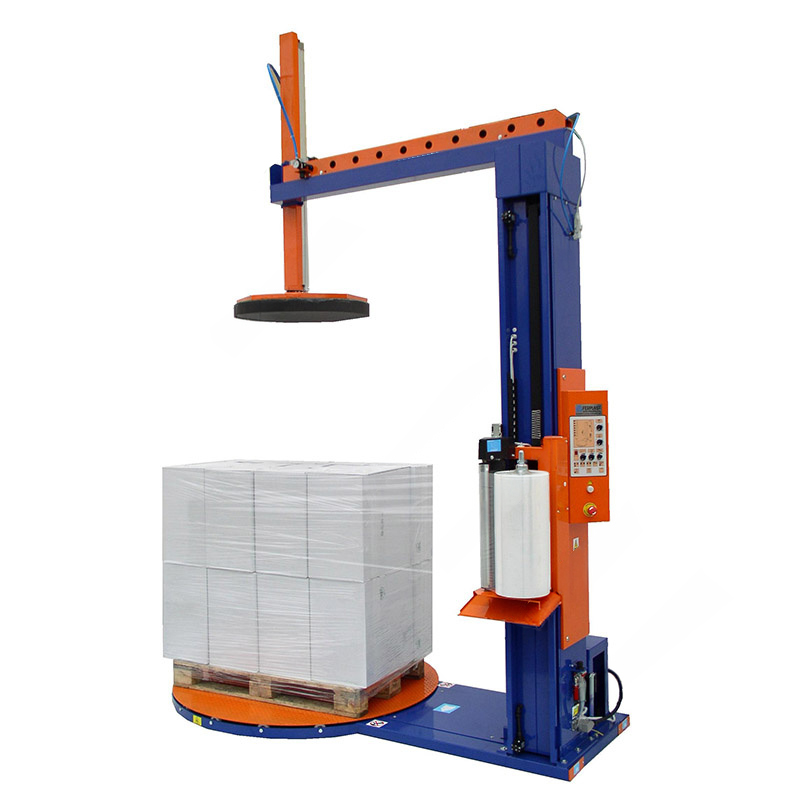

Semi-automatic pallet wrapper
Wrapping machine with photocell for film carriage up and down movement and 4 wrapping programs.
Operation
Place the pallet on the platform, secure the film to the base, select the wrapping program, and press the START button. The machine automatically completes the cycle and stops when the selected program is finished. Film cutting is performed manually.
Are you interested in this product?
Fill out the form and we will contact you with an offer and availability.
Are you interested in the product?
Fill out the form and we will contact you with an offer and availability.
Equipped with an electronic board and digital keypad, 4 wrapping programs, manual film attachment and cutting, and an automatic wrapping cycle. The machine is manufactured in accordance with CE standards. The F wrapping machine is supplied with an inverter as standard equipment for varying the speed of the film base, as well as a film base with an electromagnetic clutch. This allows the film tension to be adjusted more precisely directly from the control panel, without requiring manual adjustment of the mechanical brake.
Stretch film for wrapping machines
The film commonly used in wrapping machines is standard 23 µm film, in rolls of approximately 16 kg. One roll of film can wrap an average of about 60 pallets. The film is also available in white 30 µm, suitable for protecting the pallet contents from solar radiation. White film is opaque and can be used to conceal high-value products during transport. The film types we offer are of premium quality and suitable for use with our machines. We recommend using only high-quality film, as it significantly reduces packaging waste and failures that may arise from using unsuitable products.
Model
FP 15 SE-1800
FP 15 SE-2000
Maximum load capacity
2,000 kg for both models
3,000 kg with optional equipment
Maximum pallet dimensions
FP 15 SE-1800: 1,300 x 1,300 mm
FP 15 SE-2000: 1,400 x 1,400 mm
Maximum pallet height
2,200 mm for both models
3,000 / 3,200 mm with optional equipment
Turntable diameter
FP 15 SE-1800: 1,800 mm
FP 15 SE-2000: 2,000 mm
Turntable rotation speed
FP 15 SE-1800: 3–6 rpm
FP 15 SE-2000: 2–5 rpm
Turntable height
75 mm for both models
Film carriage up/down movement
Belt-driven
Turntable start and rotation control
Inverter for progressive start and turntable speed control
Control panel
Microprocessor control panel with digital keypad
Programmable top/bottom wraps
4 wrapping cycles:
Standard up/down cycle
Upward-only cycle
Upward-only cycle with pallet top sheet
Standard up/down cycle with pallet top sheet
Automatic / manual cycle switch
Hinged folding column
Electromagnetic clutch with potentiometer for film tension adjustment
Photocell for automatic pallet height detection
Electronic board with 3 programs:
Upward only
Up / Down
Manual wrapping
Preparation for top press
Base designed for forklift lifting
Film roll dimensions
Outer diameter: 300 mm
Inner diameter: 75 mm
Height: 500 mm
Power supply
380 V three-phase – 50 Hz + T + N
Installed power
0.6 kW for both models
Machine dimensions
FP 15 SE-1800: 1,800 x 2,800 x H 2,550 mm
FP 15 SE-2000: 2,000 x 3,000 x H 2,550 mm
Weight
FP 15 SE-1800: 550 kg
FP 15 SE-2000: 600 kg
